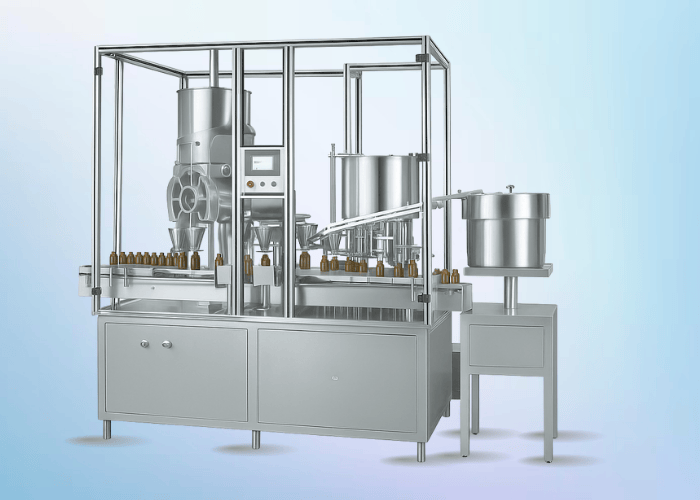

Leading manufacturer and supplier of 16-head rotary dry syrup Powder filling machine
Our 16-head Rotary Dry Syrup Powder Filling Machine is designed to meet the high-speed powder-filling solution demands of large industries, enabling them to complete bulk orders quickly and efficiently. We are an Indian manufacturer, supplier, and exporter of all types of powder-filling complete machines. Suitable for Glass, Plastic, PET, HDPE, and LDPE Bottles, our 16-head Rotary Dry Syrup Powder Filling Machine can fill up to 100 bottles every minute. This capacity may vary depending on the kind, volume, and size of the powder. Our 16 Head Rotary Dry Syrup Powder Filling Machine’s primary benefit is its ability to do high-speed powder-filling tasks without causing any problems while it is in continuous operation.
By adhering to ISO and GMP guidelines during production and rigorously testing the machine after fabrication is over, we guarantee the 16 Head Rotary Dry Syrup Powder Filling Machine’s highest rate and trouble-free operation. Customization option is available for 16 Head Rotary Dry Syrup Powder Filling Machine
16 Head Rotary Dry Syrup Powder Filling Machine is an ideal choice for:
- powered product
- granules
- seeds
- chemical
- other allied industries
During the operation in the 16 Head Rotary Dry Syrup Powder Filling Machine
- The incoming sterilized dry bottle is fed by the infeed turn table on moving conveyor belt at the desired speed for feeding.
- The bottles are transferred underneath 16 nos. funnel mounted on a round plate, whereas the powder filling auger is mounted from the center pipe.
- The speed of the 16-head rotary funnel is adjusted to match the speed of the conveyor.
- As the bottle enters the rotary bottle moving system where it passes underneath the 16-head rotary funnel, the unique bottle lifting and neck holding system of the 16-head rotary Dry Syrup Powder Filling Machine prevents the wastage of the powder.
- Each funnel fits to the bottle and the filling is achieved by the vacuum and air system.
- The conveyor continuously moves forward and the filled bottle moves forward to the exit of the rotary bottle moving system, the bottle again moves on the conveyor which takes it to the next operation level.
Prominent features of 16 Head Rotary Dry Syrup Powder Filling Machine
- No Bottle – No Fill System reduces the powder wastage
- Total Compact cGMP model
- Rotary Bottle Movement System with Rotary Funnel System
- Funnel equipped with a Unique Vibratory system offers filling semi-free flow powder at a higher speed
- Easy Cleaning / AutoClaving / Sterilization of all moving parts
- 304 stainless steel construction
- +/- 1 to 2% Filling Accuracy may differ based on powder
- Star Wheel System for automatic Infeed and Exit of Bottles through
- Automatic Machine on/off system if no bottle at conveyor
- Low Air – automatic Machine Stop System
- Low Vacuum – automatic Machine Stop System
- Equipped with blower, used for dust extraction
